Manawa Ureteral Access Sheath
Ureteral Access Sheath
Designed for easier, less tramatic scope manipulation during ureteroscopy. The ureteral access sheath is designed to protect the ureter during repeated instruments exchanges during ureteroscopy.
Kink Resistant Sheath
Sheath is reinforced with a stainless steel coil designed to provide stability and strength during placement.
Ease of Insertion
Hydrophilic coated sheath, designed for lubricity during sheath placement.
Dual tapered dilator tip designed for atraumatic insertion.
User Friendly
Radiopaque marker band on the sheath confirms placement of the sheath tip during fluoroscopy.
Innovative hub design providing a secure latching mechanism.
Order Number |
Internal Diameter French Size | External Diameter French Size | Length |
UAS-0109520S |
9.5Fr | 11.5Fr | 20cm |
UAS-0109528S | 9.5Fr | 11.5Fr | 28cm |
UAS-0109535S | 9.5Fr | 11.5Fr | 35cm |
UAS-0109545S | 9.5Fr | 11.5Fr | 45cm |
UAS-0110720S | 10.7Fr | 12.7Fr | 20cm |
UAS-0110728S | 10.7Fr | 12.7Fr | 28cm |
UAS-0110735S | 10.7Fr | 12.7Fr | 35cm |
UAS-0110745S | 10.7Fr | 12.7Fr | 45cm |
UAS-0112020S | 12.0Fr | 14.0Fr | 20cm |
UAS-0112028S | 12.0Fr | 14.0Fr | 28cm |
UAS-0112035S | 12.0Fr | 14.0Fr | 35cm |
UAS-0112045S | 12.0Fr | 14.0Fr | 45cm |
UAS-0114020S | 14.0Fr | 16.0Fr | 20cm |
UAS-0114028S | 14.0Fr | 16.0Fr | 28cm |
UAS-0114035S | 14.0Fr | 16.0Fr | 35cm |
UAS-0114045S | 14.0Fr | 16.0Fr | 45cm |
|
The sheath material is reinforced with a stainless steel coil, designed to provide stability and strength even in the most challenging tortuous anatomy. |
|

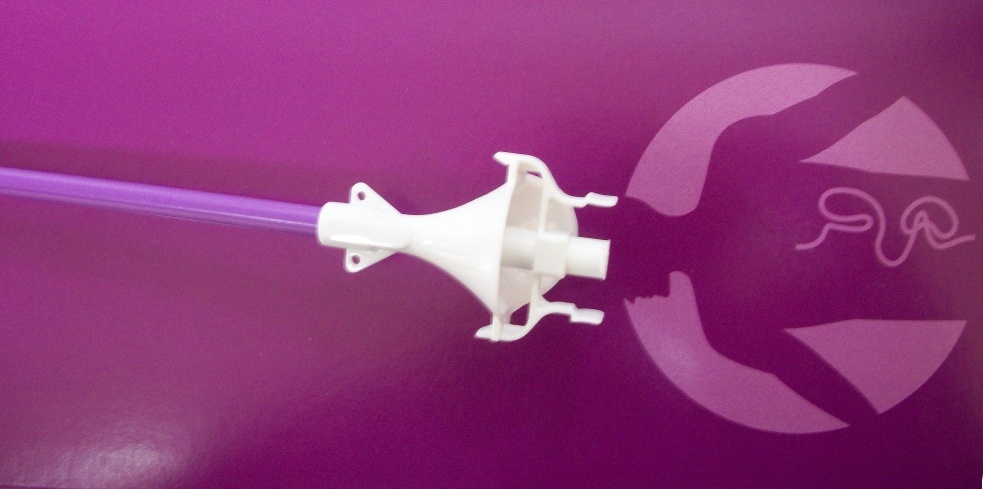

The secure double latch mechanism allows for one-handed latch disengagement without rotational alignment. |
|
Manawa Access Sheath is compatible with 0.038” guidewires. |
|
The sheath material is reinforced with a stainless steel coil design to maximize the pushability and column strength even in the most challenging tortuous urinary tract. |
|
Proprietary hydrophilic coating is applied on sheath outside diameter and dilator tip allowing ease of insertion. |
|
The low profile sheath allows ease of insertion and facilitates placement even in the most challenging tortuous anatomies. The outside diameter of the sheath is only 2Fr bigger than the dilator tubing across the entire range. |
