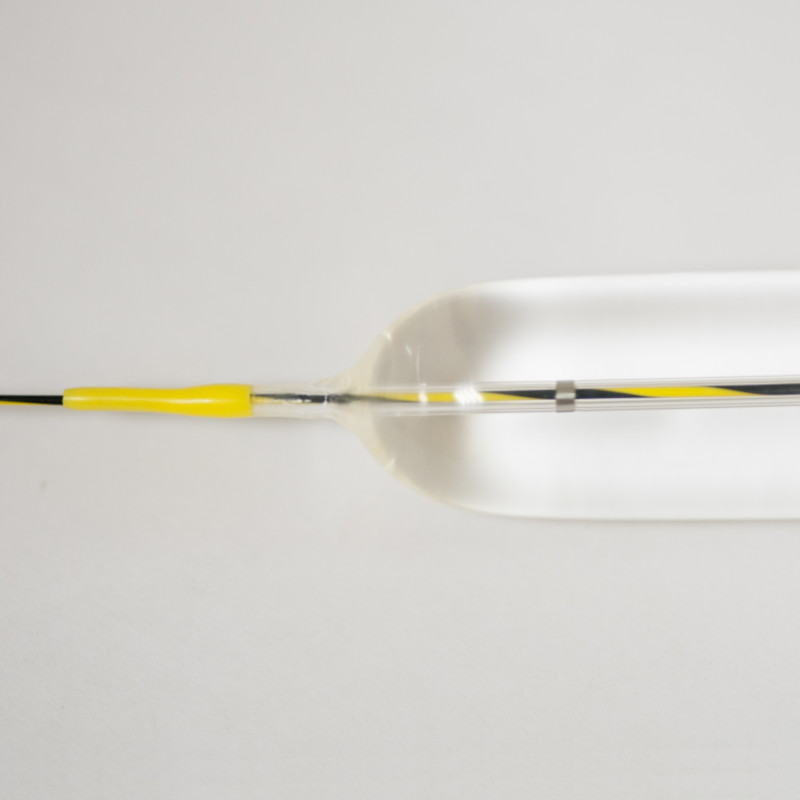

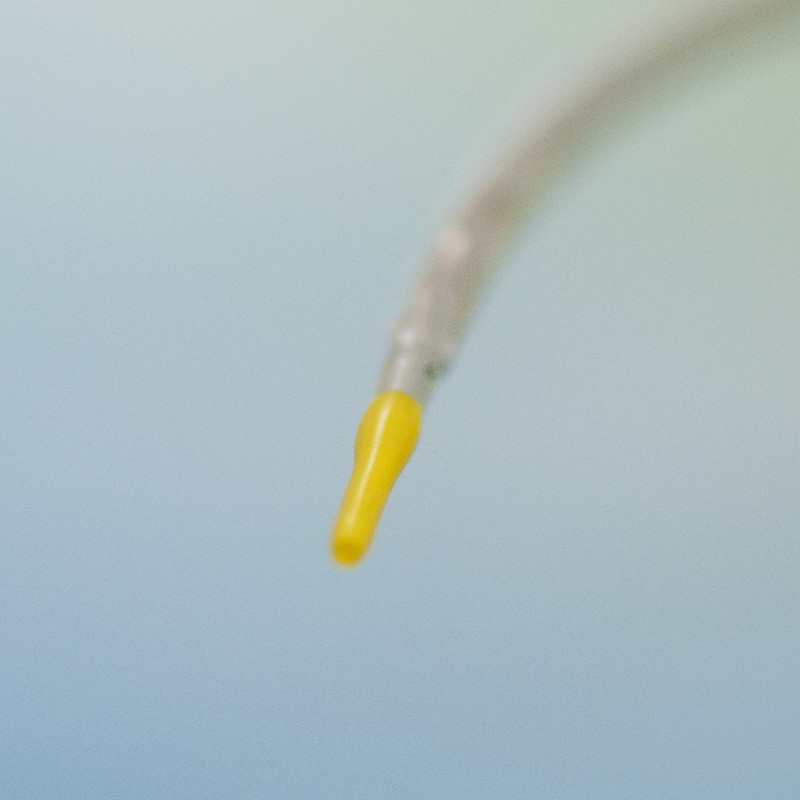

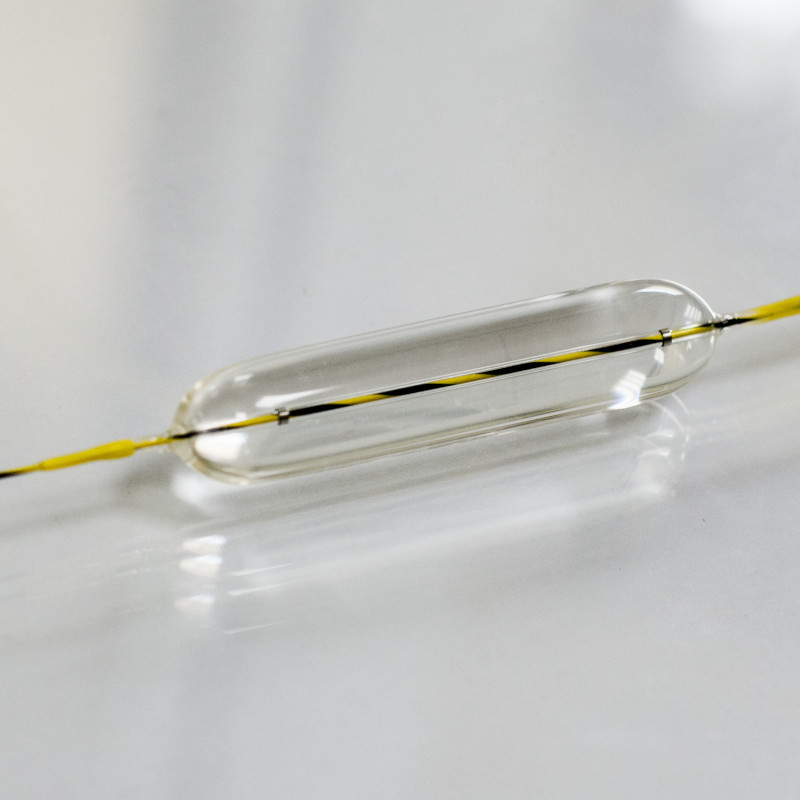

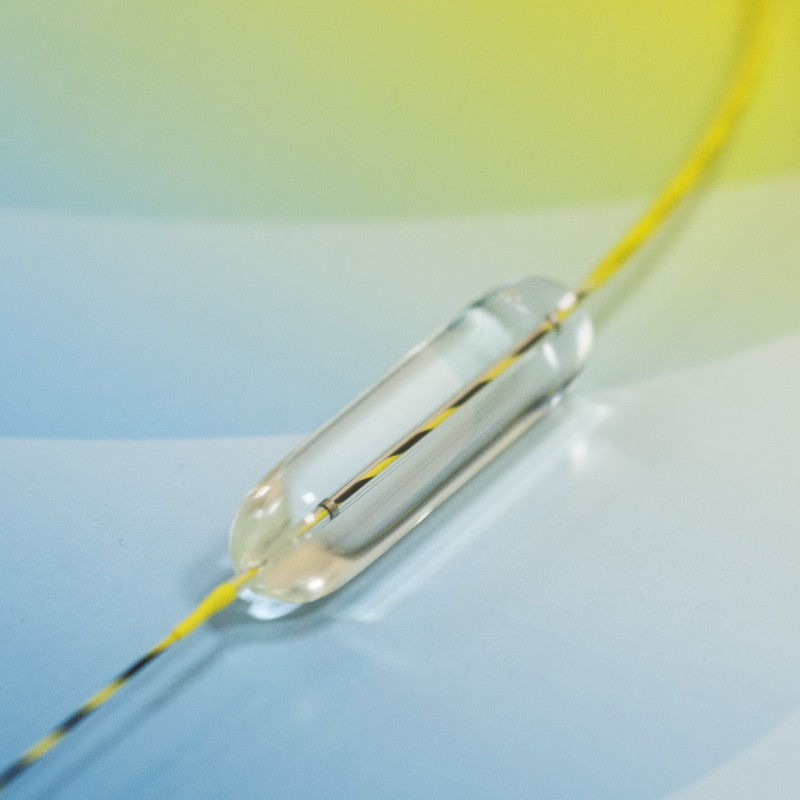

Amara 3-Stage Balloon Dilator
Progressive Balloon Dilatation Catheter providing a consistent performance for balloon endoscopy with optimal control, efficiency and performance. Amara™ Progressive Balloon Dilatation Catheters are indicated for use in the removal of difficult biliary stones (DASE).
Key Features
- Controlled radial balloon expansion designed to produce 3 distinct and precise diameters at 3 separate pressures during dilatation.
-
Catheter shaft designed with a high column strength to offer best-in-class pushability and
torque control. - Compatible with min 2.8mm scope working channel.
- High pressure balloon resistance designed to produce no balloon waisting.
- Delivery over guidewires up to 0.035" under direct visualization or fluoroscopy.
- Radiopaque marker band to confirm placement during fluoroscopy.
Specifications
| Reference Part Number |
Inflated Balloon Diameter |
Balloon Length |
Inflated Pressure |
Catheter Length |
Minimum Working Channel |
Guidewire Size |
|---|---|---|---|---|---|---|
| GDB-0110630S | 6-7-8MM | 3.0CM | 3-6-10ATM | 180CM | 2.8MM | 0.035" |
| GDB-0110655S | 6-7-8MM | 5.5CM | 3-6-10ATM | 180CM | 2.8MM | 0.035" |
| GDB-0110830S | 8-9-10MM | 3.0CM | 3-5.5-9ATM | 180CM | 2.8MM | 0.035" |
| GDB-0110855S | 8-9-10MM | 5.5CM | 3-5.5-9ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111030S | 10-11-12MM | 3.0CM | 3-5-8ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111055S | 10-11-12MM | 5.5CM | 3-5-8ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111230S | 12-13.5-15MM | 3.0CM | 3-4.5-8ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111255S | 12-13.5-15MM | 5.5CM | 3-4.5-8ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111555S | 15-16.5-18MM | 5.5CM | 3-4.5-7ATM | 180CM | 2.8MM | 0.035" |
| GDB-0111855S | 18-19-20MM | 5.5CM | 3-4.5-6ATM | 180CM | 3.2MM | 0.035" |
| GDB-0120630S | 6-7-8MM | 3.0CM | 3-6-10ATM | 240CM | 2.8MM | 0.035" |
| GDB-0120655S | 6-7-8MM | 5.5CM | 3-6-10ATM | 240CM | 2.8MM | 0.035" |
| GDB-0120830S | 8-9-10MM | 3.0CM | 3-5.5-9ATM | 240CM | 2.8MM | 0.035" |
| GDB-0120855S | 8-9-10MM | 5.5CM | 3-5.5-9ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121030S | 10-11-12MM | 3.0CM | 3-5-8ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121055S | 10-11-12MM | 5.5CM | 3-5-8ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121230S | 12-13.5-15MM | 3.0CM | 3-4.5-8ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121255S | 12-13.5-15MM | 5.5CM | 3-4.5-8ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121555S | 15-16.5-18MM | 5.5CM | 3-4.5-7ATM | 240CM | 2.8MM | 0.035" |
| GDB-0121855S | 18-19-20MM | 5.5CM | 3-4.5-6ATM | 240CM | 3.2MM | 0.035" |
